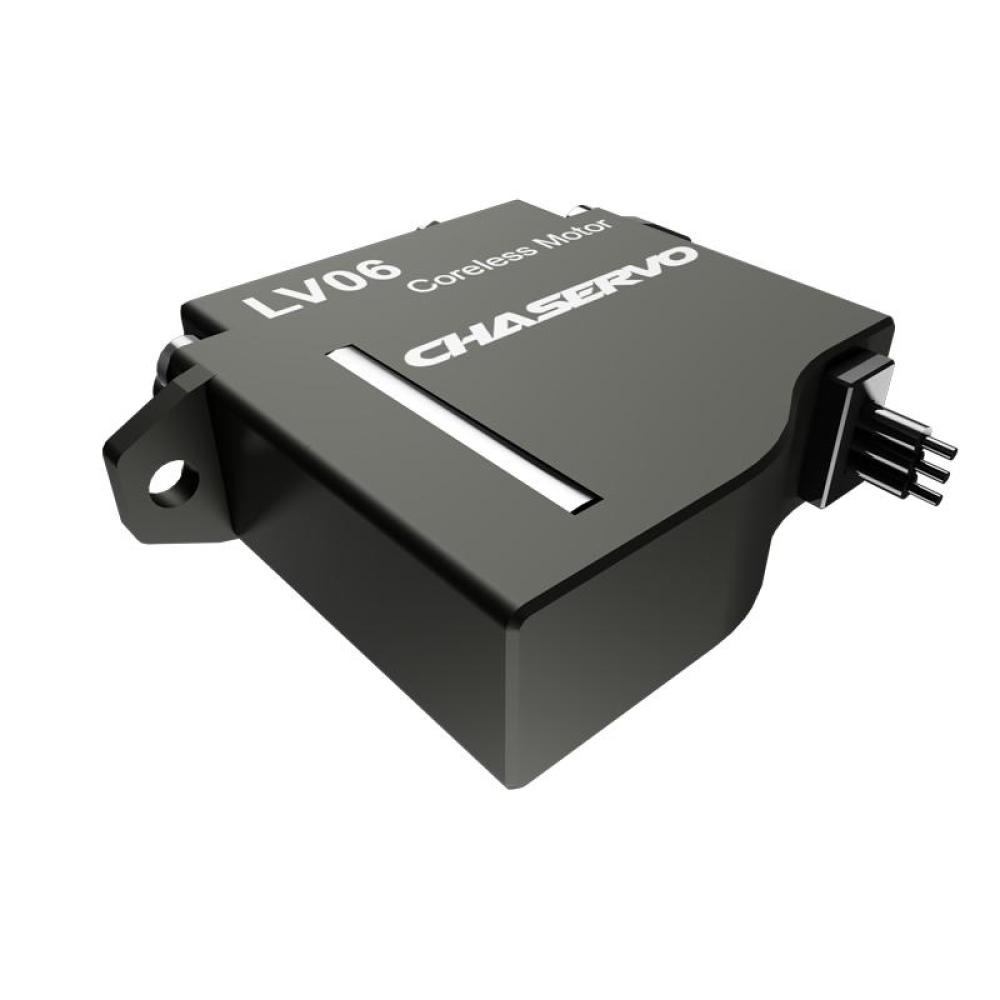

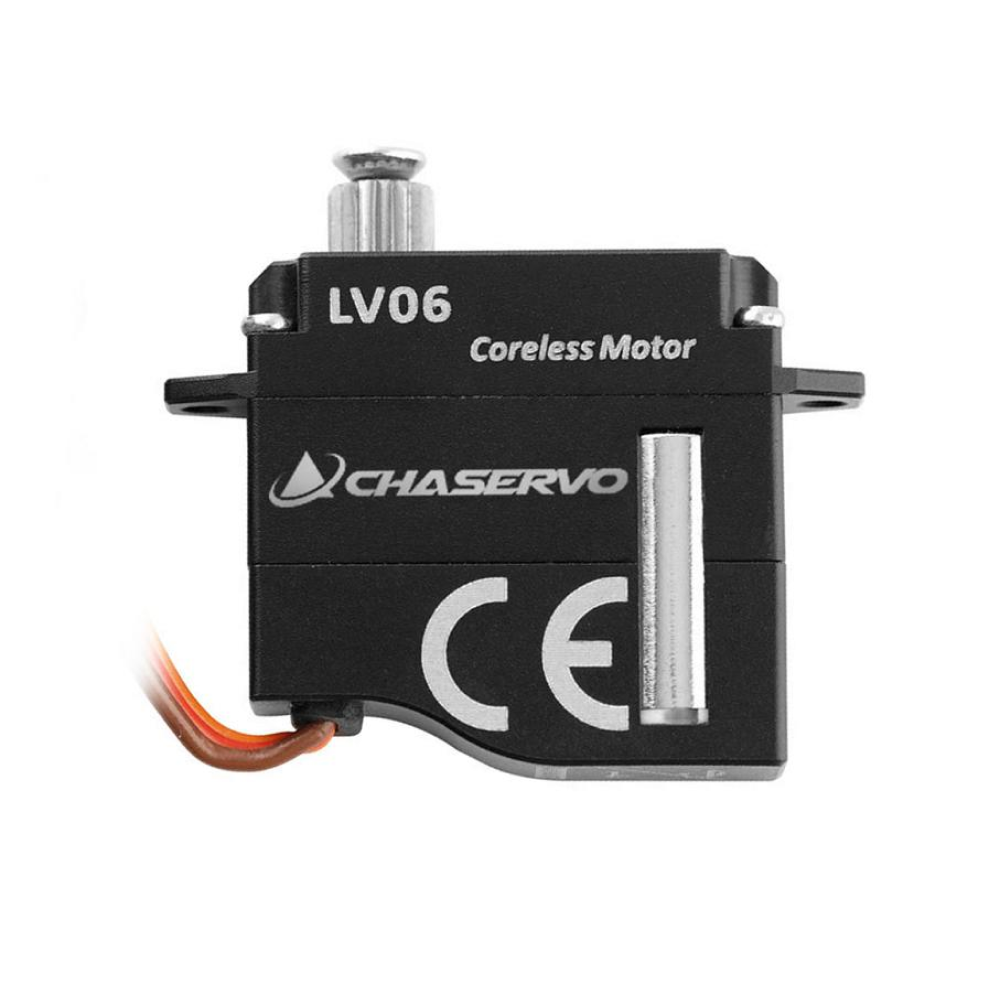

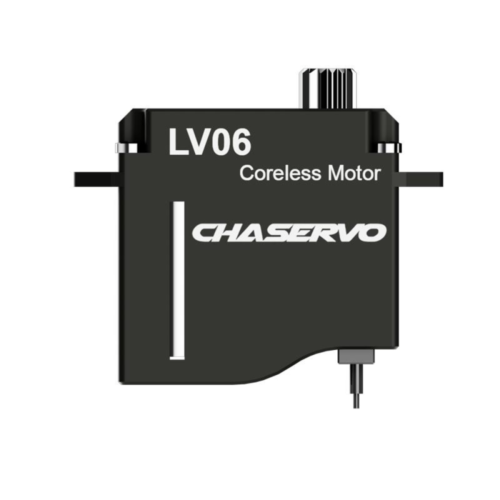

The new CHA LV06 is a very high spec 6mm thin servo that is ideal for gliders and small high performance models.

This version of the LV06 servo has normal mounting lugs (also called mounting tabs) and is for low voltage setups.

The LV06, LV06H, LV06N is the low voltage series and the HV06, HV06H, HV06N is the high voltage series.



CHA LV06 Servo Specifications

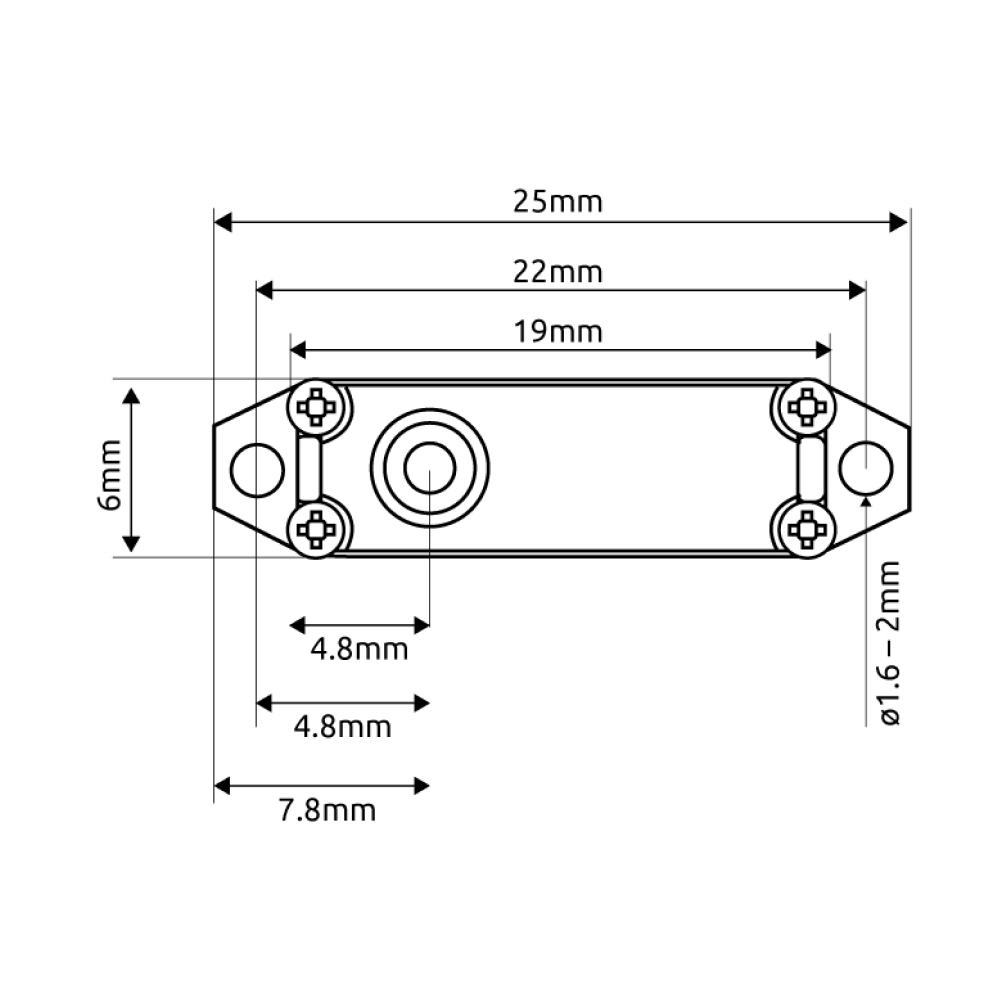

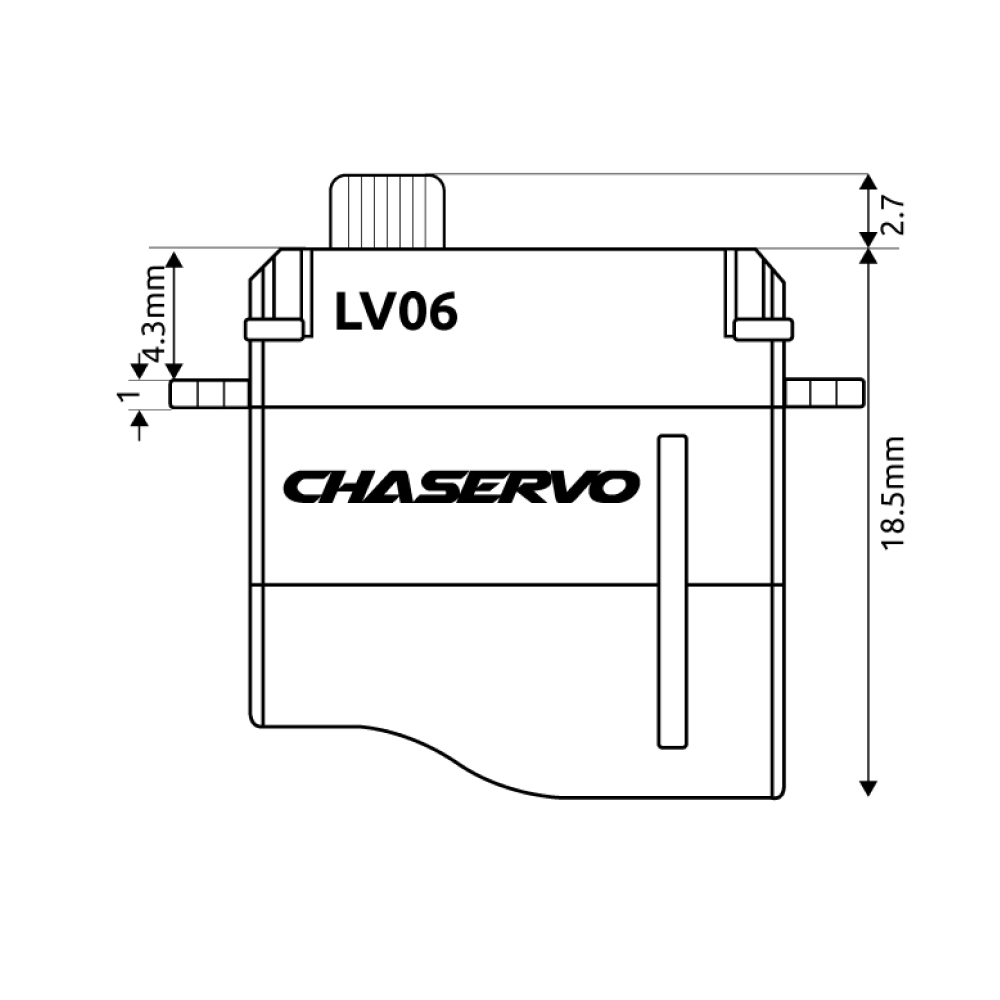

Body dimensions 19.0 mm wide x 6.0 mm thick x 18.5 mm high 0.75" wide x 0.24" thick x 0.73" high
Max dimensions 25.0 mm wide x 6.0 mm thick x 21.5 mm high 0.98" wide x 0.24" thick x 0.85" high
Stall torque (3.3V) 0.9 Kg.cm 12 oz.in
Stall torque (4.2V) 1.3 Kg.cm 18 oz.in
Stall torque (5V) 1.7 Kg.cm 24 oz.in
Weight 5.8 g 0.20 oz
Lead length 14 cm 5.5 in
Operating speed (3.3V) 0.077 sec/60°
Operating speed (4.2V) 0.066 sec/60°
Operating speed (5V) 0.055 sec/60°
Operating voltage 3.3V to 5V
Operating temperature -10 to +65 °C
Bearings 2 ball bearings
Gear material Hardened Steel
Case material Aluminum Alloy
Motor type Coreless DC Motor
Working frequency 333 Hz
Dead band/resolution 1 µs
Pulse width for ± 60º 900-2100 µs
Digital Yes
Programmable No
Position feedback Potentiometer

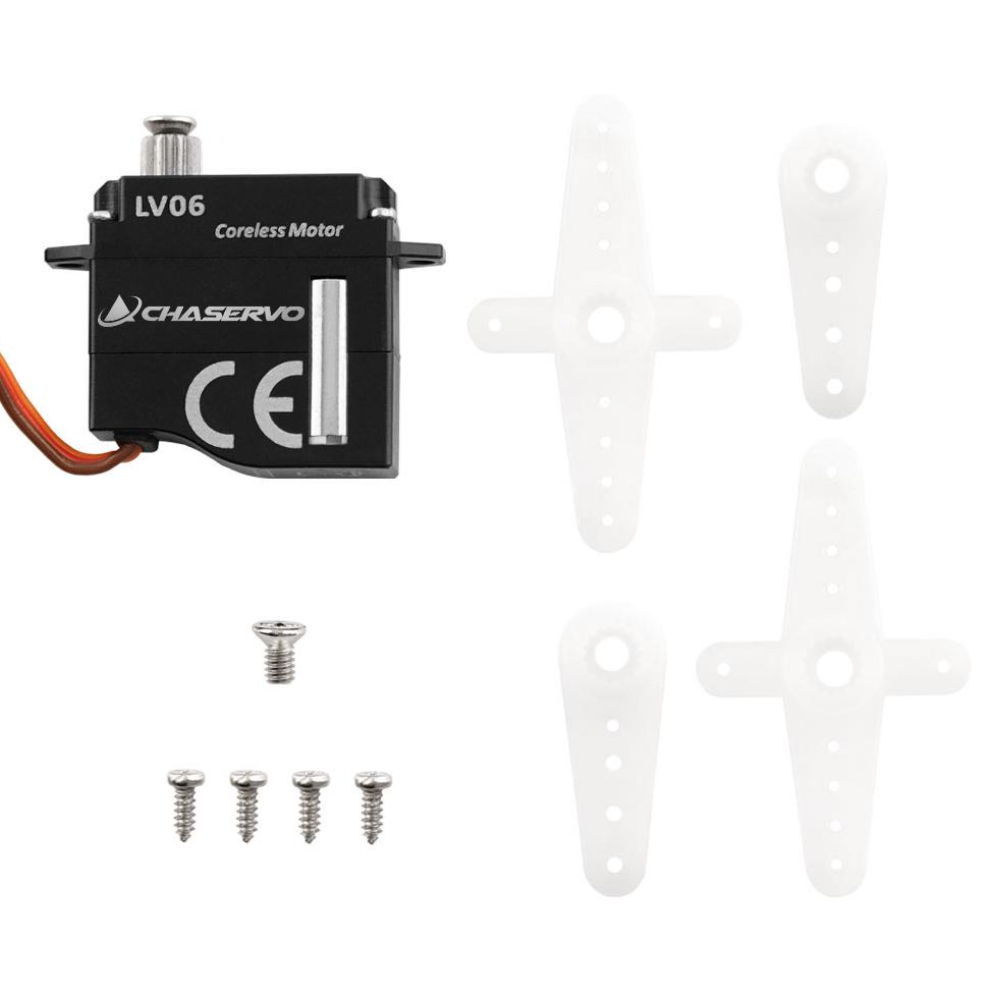

Supplied accessories 2 double sided output arms, 2 single sided output arms, 2 arm retaining screws, 4 mounting screws
